I/O CARD

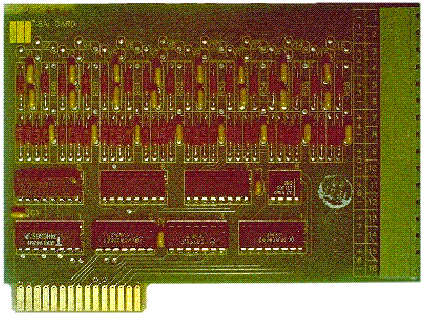

Look at picture of the I/O card.

This COMMANDER I/O function card interfaces 8 analog input signals to a companion Base/Expansion cardfile assembly.

Analog signals may be either unipolar (ie 420mA) or bi-polar (±10V) as the input circuit is differential in nature. The actual A/D conversion is carried out by circuits present on the unit's Base assembly. AI cards may also be installed in (any) Expansion cardfiles. Most process signal types can be properly conditioned to interface with this card.

__________________________________________

SPECIFICATIONS

__________________________________________

Functional

See related specifications for A/D converter

• Inputs per card: 8 (differential)
• Commons per card: 8
• Input impedance: 1M
• Signal conditioning accuracy: ±0.10% of span
• Common mode input range: ±200V peak
• Common mode rejection: >80dB @ 60Hz,
  60dB @ DC
• Normal mode rejection: >30dB @ 60Hz
• Firmware span calibration by point, stored in Base assembly's non-volatile EEPROM
• Accepts ±1mA, ±5V (bipolar) signals or 020mA, 0-5V (unipolar) signals, with proper termination resistor
• Terminal types: Removable terminal or IDC (ribbon cable) header as specified

__________________________________________

Operating power

• 10-14VDC input power, from Base assembly
• Typical logic current drain <5mA

__________________________________________

Transient protection

• Meets or exceeds IEEE C37.90A-1987
  surge withstanding specification

__________________________________________

Operating environment (electronics)

• Standard -10 to +70°C temperature
• 0 to 95% relative humidity (non-condensing)

__________________________________________

COMMON INPUT VALUES

Below is listed some common current analog signals and their proper scaling resistor:

SIGNAL       R-VAL        ADD'L.

                          SPECS



0 to +1mA    5K           MF 0.1%

                          1/2W



1mA          5K           MF 0.1%

                          1/2W



0 to +20mA   250          MF 0.1%

                          1/2W



+4 to +20mA  250          MF 0.1%

                          1/2W



0 to 10VDC   5K/5K        See manual

             Divider

RTD and Thermocouple devices require a transmitter module to amplify (and generally linearize) such high impedance signals within close proximity to the sensor. See loop transmitters on page 114.

__________________________________________

ADDITIONAL INFORMATION

Push the "BACK" button in your browser program after viewing the following pages, to return to this page:

Terminals & Connectors

Look at picture of the I/O card.

__________________________________________

ORDERING INFORMATION

200104: I/O CARD, 8 POINT AI

This assembly is provided in the following versions (XXX designation of part number).

• -000: I/O card, pull-apart termination
• -100: I/O card, IDC-type termination

200104-000 $276

200104-100 $268

MATING TERMINAL. Pull-apart Terminal Strip, for version -000.
200128-016 $36
