This "expansion" assembly provides the means to expand the I/O capacity of the COMMANDER Base assembly in increments (files) of 14 I/O function cards.
The cardfile assembly includes a non-intelligent motherboard which extends the SimpleBUSS™™ in a daisy-chain fashion via an interconnecting ribbon cable. Up to three Expansion assemblies may be connected to any particular Base assembly, for a total capacity of 56 functional cards. Although 56 I/O cards are possible, the maximum number of I/O point types have upper limits, depending upon the firmware version implemented.
__________________________________________
ADDITIONAL INFORMATION
Push the "BACK" button in your browser program after viewing the following pages, to return to this page:

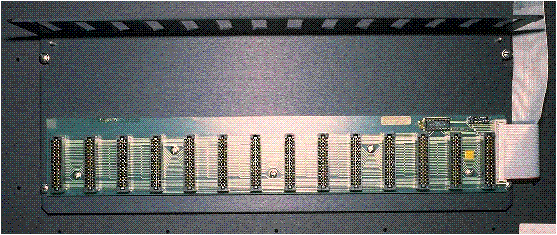

Look at picture of this assembly.
Look at picture of this assembly, with optional cardfile cover (I/O cards w/ LEDs).
__________________________________________
ORDERING INFORMATION
200108: COMMANDER EXPANSION CARD
200108-000 $328
__________________________________________
CARDFILE INTERCONNECT CABLES
Interconnects one or more "expansion" assemblies with respective "base" assembly. Specify "U" space separating base and expansion assemblies. "File" count equivalent to sum of (one) base cardfile assembly plus total number of expansion assemblies.
200112-001 2-FILE CABLE $26
200112-002 3-FILE CABLE $33
200112-003 4-FILE CABLE $40
