DIMENSION PLC

DESCRIPTION

This assembly is a large capacity Programmable Logic Controller ("PLC") which performs all Input/Output, control (ladder) logic, and host communications operations for industrial automation applications.

The DIMENSION™ Programmable Controller ("DPC") provides advanced data measurement, closed-loop control, and local/remote communications for industrial automation systems.

Each DPC features a powerful 32-bit CPU (industrialized IBM compatible) running the Tele-Denken SoftPLC™ kernel, combined with one or more intelligent I/O controllers ("IOCs") that can be "distributed" around the plant. These IOC cardfile(s) are populated with applicable multipoint I/O cards.

These units are backward compatible to Allen-Bradley 5/25 PLCs, supporting existing ladder-logic programs as well as Data Highway communications. Combined with advanced ladder development tools, the DPC also supports external "C" subroutines when required for particular applications.

DPCs are also upward compatible with the Company's "open system" ENTERPRISE™ Station Computer family for long term evolutionary capabilities.

Typical Input/Output: 256DI/PI 128AI 128DO 64AO

__________________________________________

APPLICATIONS

• Numerical machine control
• Production and process automation
• Switch sequencing, station protection, and interlocking functions

__________________________________________

FEATURES

• Non-proprietary hardware environment
• Communications to I/O conform to open standards set by IEC (8705)
• AB PLC-5/25 emulation including instruction set, I/O forcing, and online programming
• Reprogrammable, non-volatile EEPROM retains IOC configuration data during loss of power
• Optional 1ms event recording ("SOE")
• Supports up to 2,048 I/O points using ADC's "distributed" I/O Controllers
• Ladder-Logic can call user-defined "C" functions via optional programmer's tool kit
• Imports A-B PLC-2 and PLC-5 ladder programs
• Industrial quality components and workmanship for long and reliable operation

__________________________________________

I/O CARD SELECTION

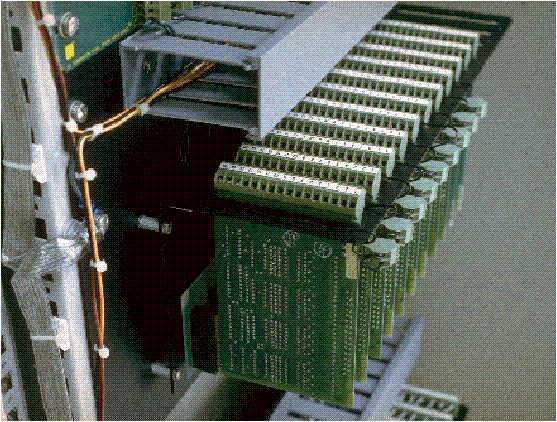

Look at picture, side view of a typical cardfile (I/O cards installed in a base/expansion motherboard) mounted in a EIA (19" rack) cabinet. Links to the types of I/O cards available for this unit can be found on the Catalog Introduction Page.

__________________________________________

SPECIFICATIONS

See I/O cards for respective specifications.

__________________________________________

Operating environment (electronics)

• Standard -10 to +70°C temperature
• 0 to 95% relative humidity (non-condensing)

__________________________________________

Operating power

• 10-14VDC input power
  (AC/DC-DC converters/chargers available)
• Typical logic current drain 500mA
• Typical ON indicator draws 3mA
• Typical ON control relay draws 33mA

__________________________________________

CPU

• Processor type: 32bit Intel 386DX, or higher as specified

__________________________________________

Integral A/D convertor (for AI cards)

See related specifications for analog input cards

• Conversion method: 12bit successive approximation (11 bits + sign bit)
• Conversion rate: 18msec per point, nominal
• Conversion accuracy: ±0.05% of span
• Conversion resolution: 1 part in 4000

__________________________________________

Analog data mode options (firmware setting)

• "Offset:" 1.0-5.0V 0-4000 raw counts
• "Linear:" 0.0-5.0V 0-4000 raw counts
• "Signed:" ±5.0V ±2000 raw counts
  (2's compliment)

__________________________________________

Functional

• Event ("SOE") buffer (for applicable status points) timetags accurate within 1ms, provided no more than 8 events occur during any 10ms interval. SOE points assigned on a group (I/O card) basis.
• Firmware tailors database to meet project requirements
• Standard DI cards can be used for count accumulation, DC to 40Hz pulse signals (based on 10ms debounce time). Per requirements, database configured for form "A," form "C," or quadrature ("up/down") counters.

__________________________________________

CPU Communications

• Each CPU as a minimum has serial ports for 1) TTY (Terminal interface), 2) DF1 (TopDoc connection), and 3) IEC 870-5 (I/O cardfiles)

• Integral Ethernet connection supports IPX/SPX standard, as well as other optional interfaces
  (ie custom TCP/IP, etc.)

• Optional A-B Data Highway/DH+ interface

__________________________________________

ORDERING INFORMATION

200149: DIMENSION UNIT

ENGINE. 32-bit Intel CPU w/ 1MB DRAM. "Engine" also includes SoftPLC kernel, 6position passive backplane, panelmounted aluminum frame for CPU and adapter cards, P/S with 24VDC input, and ethernet adapter. CPU and network cards occupy ISA slots, leaving 4 available for other adapters.
200149-000 $2000†

ENGINE W/ I/O CARDFILE #1. 200149-000 assembly with first I/O cardfile assembly.
200149-001 $3088†

OPTIONAL DH/DH+ ADAPTER CARD. For direct connection to Allen-Bradley Data Highways. Requires ISA slot on motherboard.
060002-000 $1450†

SPARE ETHERNET ADAPTER. Intel 16-bit Ether-Express card.
060003-001 $171
